Booth Filter Synthetic Roll

Media:100%Synthetic fiber

Impregnated glue

Netting or bonded fabric

Primary fiter grade:G2 G3 G4

Fine filter grade:F5 F6 F7

Testing:EN779 ANSI/ASHRAE 52.1

Contact Now

Synthetic fiber filter cotton adds a fine fiber layer with anti-fracture properties. Along the direction of the airflow, the density of the fiber layer gradually increases, resulting in high tensile strength and resistance

Small, after being treated with spray glue or immersion glue, due to high temperature, the powder can fully penetrate the medium, which not only avoids fiber breakage and shedding but also prevents dust particles

The piece cannot pass through. The main body is composed of anti-volatile solvents and does not contain silicone. The top cotton air outlet surface is covered with polyester square mesh and can guide

The airflow is evenly distributed.

Product application: Mainly applied to the ceiling surfaces of automotive spray painting and baking workshops as well as assembly workshops

Material: 100% synthetic fiber + solid glue + mesh or bonded fabric

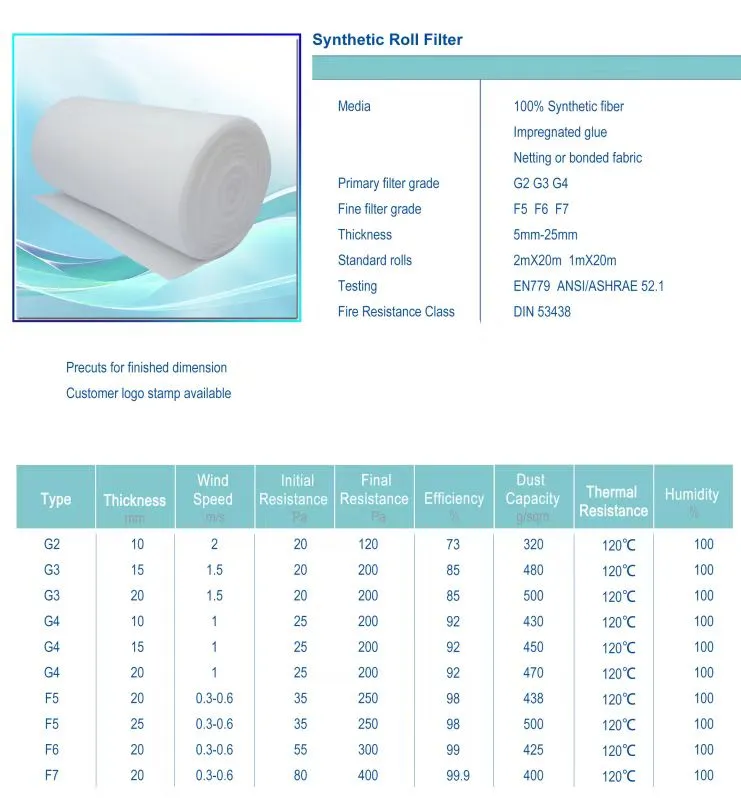

Type	Thickness mm	Air Velocity m/s	Initial Resistanc Pa	Final Resistance Pa	Efficiency %	Dust Capacitg g/sqm	Thermal Resistance	Humidity
G2	10	2	20	120	73%	320	120℃	100
G3	15	1.5	20	200	85%	480	120℃	100
G3	20	1.5	20	200	85%	500	120℃	100
G4	10	1	25	200	92%	430	120℃	100
G4	15	1	25	200	92%	450	120℃	100
G4	20	1	25	200	92%	470	120℃	100
F5	20	0.3-0.6	35	250	98%	438	120℃	100
F5	25	0.3-0.6	35	250	98%	500	120℃	100

What People Say Booth Filter Synthetic Roll

William Harris

We’ve been using the spray booth filter roll from Hebei Fangyu for our custom paint shop, and the difference in surface clarity is remarkable. The media traps even the finest overspray particles, virtually eliminating the need for color sanding due to dust nibs. It’s the most consistent paint booth filter roll we’ve ever used in our downdraft system.

Thomas Baker

Finding a high-quality paint booth exhaust filter roll that doesn't clog instantly was our main priority. This synthetic media has an incredible holding capacity. It protects our exhaust fans from sticky residue buildup far better than standard paper or thin glass fiber. It’s saved us thousands in fan maintenance and cleaning costs this year.

Daniel Robinson

The air balance in our booth is critical for a laminar flow. We switched to Hebei Fangyu’s paint booth intake filters roll because of its low initial resistance. It provides clean, filtered air without straining our intake motors. The roll format makes it so easy to cut exactly what we need for our ceiling grids, reducing material waste significantly.

Christopher Lewis

As a large-scale furniture manufacturer, we go through paint booth filter rolls rapidly. Sourcing directly from Hebei Fangyu has not only reduced our overhead but actually improved our filtration quality. The synthetic fibers are tough and don't shed, which is vital when we are applying high-gloss topcoats.

Andrew Walker

I’ve tried many suppliers, but this spray booth filter roll is the easiest to work with. It has the right amount of stiffness to stay in place without sagging. Whether we are using it for wall filtration or floor capture, the performance is top-tier. A reliable product from a professional manufacturer.
