Weight capacity of ceiling filter frames

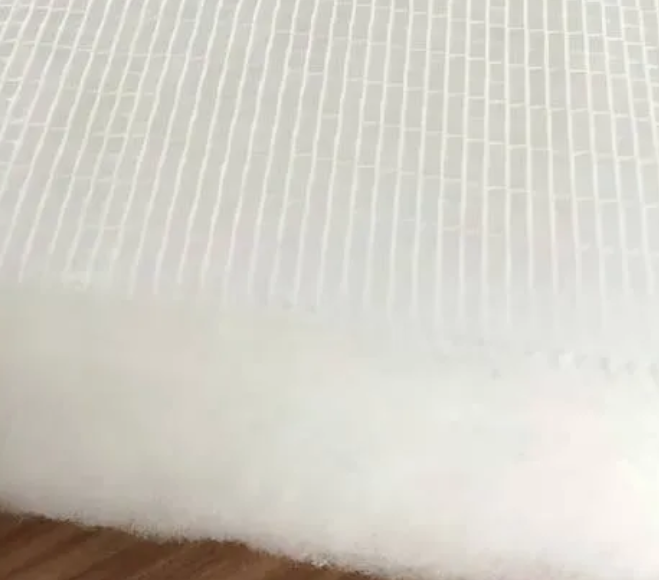

Weight capacity is a vital consideration for ceiling filter frames, as they must securely support filter media while maintaining structural integrity in various environments, from paint booths to assembly workshops. The ability to bear weight ensures that paint booth ceiling filter, Ceiling filter, and Spray Booth filter products remain stable, preventing sagging or collapse that could compromise filtration efficiency and workplace safety. Hebei Fangyu Filter Material Technology Co.,Ltd. designs their ceiling filter frames to accommodate the specific weights of their filters, which include medium effect filter cotton with enhanced fracture resistance, a gradient fiber density structure, and a polyester grid top layer. This filter, suitable for automotive spray booths and paint workshops, offers high tensile strength, low resistance, and resilience in high humidity (up to 100% relative humidity) and temperatures up to 120℃. Understanding the weight capacity of these frames and how they interact with the filters they support is key to ensuring reliable performance in industrial settings.

Structural Design for Weight Support in Paint Booth Ceiling Filter

• Frame Material Strength: Paint booth ceiling filterframes are typically constructed from robust materials like galvanized steel or aluminum, chosen for their high strength-to-weight ratio. These materials ensure the frame can support the weight of the filter media, including the 550g/sqm to 600g/sqm polyester fiber filters from Hebei Fangyu Filter Material Technology Co.,Ltd. The metal frames resist bending under load, maintaining a flat surface for the filter to rest on.
• Grid Reinforcement: Many paint booth ceiling filterframes feature a grid pattern with crossbars spaced to distribute weight evenly across the frame. This prevents localized stress points that could lead to failure, especially when the filter media becomes heavier as it accumulates dust or overspray. Hebei Fangyu Filter Material Technology Co.,Ltd. optimizes the grid spacing in their paint booth ceiling filter frames to match the weight of their filters, ensuring balanced support.
• Mounting Hardware: The hardware used to attach paint booth ceiling filterframes to ceilings—such as brackets and fasteners—must also contribute to weight capacity. Hebei Fangyu Filter Material Technology Co.,Ltd. selects heavy-duty mounting components that complement the frame’s strength, ensuring the entire assembly can withstand the filter’s weight plus any additional stress from airflow or environmental factors.

Weight Distribution in Ceiling Filter

• Media Weight Considerations: Ceiling filtermedia, like the 100% polyester fiber options from Hebei Fangyu Filter Material Technology Co.,Ltd., has a consistent weight per square meter (550g/sqm or 600g/sqm), which the frame must support uniformly. The frame’s design accounts for this even weight distribution, avoiding sagging in areas where the media might otherwise pull down.
• Moisture and Dust Impact: Over time, Ceiling filtermedia can gain weight as it absorbs moisture (even in 100% relative humidity) or captures dust and overspray. The frame must accommodate this increased weight without deforming. Hebei Fangyu Filter Material Technology Co.,Ltd.’s Ceiling filter frames are tested to handle the wet weight of their moisture-resistant media, ensuring long-term stability.
• Edge Support: The edges of Ceiling filterframes are reinforced to prevent bending, as the edges often bear the brunt of the media’s weight, especially in larger filter panels. Hebei Fangyu Filter Material Technology Co.,Ltd. thickens or doubles the frame material at the edges, providing extra support where it is most needed.

Load-Bearing Features of Spray Booth Filter Frames

• High-Temperature Tolerance: Spray Booth filterframes must maintain their weight capacity even in environments up to 120℃, as high temperatures can weaken some materials. Hebei Fangyu Filter Material Technology Co.,Ltd. uses heat-resistant metals for their Spray Booth filter frames, ensuring they do not soften or lose structural strength when exposed to the elevated temperatures common in paint booths.
• Compatibility with Filter Layers: Spray Booth filteroften includes multiple layers, such as the medium effect filter cotton with a polyester grid top layer. The frame’s weight capacity must account for the combined weight of these layers. Hebei Fangyu Filter Material Technology Co.,Ltd. designs frames that easily support the layered structure of their Spray Booth filter, ensuring each component remains securely in place.
• Installation Flexibility: Spray Booth filterframes are designed for easy installation, with features like hook-and-loop fasteners or clip systems that do not compromise weight capacity. These systems allow for quick filter replacement while maintaining a tight, secure fit. Hebei Fangyu Filter Material Technology Co.,Ltd. ensures their installation mechanisms can handle the filter’s weight without slipping or loosening over time.

Technical Specifications of Ceiling Filter

• Weight-to-Strength Ratio: The technical specifications of the Ceiling filter—including its polyester fiber composition and weight—directly influence the required weight capacity of the frame. Hebei Fangyu Filter Material Technology Co.,Ltd.’s 550g/sqm and 600g/sqm filters, with their high tensile strength, are designed to work with frames that can support these weights without strain, ensuring the filter maintains its shape and functionality.
• Performance Under Load: The filtration class (F5/M5, EU5) of the Ceiling filteris achieved in part by its structural design, which relies on the frame to keep the media flat and properly tensioned. A frame with adequate weight capacity ensures the filter media does not bunch or sag, preserving its gradient fiber density and uniform airflow distribution. Hebei Fangyu Filter Material Technology Co.,Ltd. emphasizes this synergy between filter and frame to deliver consistent performance.

Ceiling Filter FAQS

What determines the weight capacity of a Paint booth ceiling filter frame?

The weight capacity of a paint booth ceiling filter frame is determined by its material (e.g., galvanized steel), grid design, and reinforcement at edges and mounting points. Hebei Fangyu Filter Material Technology Co.,Ltd. engineers their frames to support the weight of their 550-600g/sqm filters, ensuring stability in spray booth environments.

How does moisture affect the weight capacity requirements of Ceiling filter frames?

Moisture increases the weight of Ceiling filter media, so frames must accommodate this added load. Hebei Fangyu Filter Material Technology Co.,Ltd.’s Ceiling filter frames are designed to handle the wet weight of their moisture-resistant media, even at 100% relative humidity, without compromising stability.

Can Spray Booth filter frames support multiple layers of filter media?

Yes, Spray Booth filter frames from Hebei Fangyu Filter Material Technology Co.,Ltd. are designed to support multiple layers, including the medium effect filter cotton and polyester grid top layer. Their weight capacity accounts for the combined weight of these layers, ensuring secure support.

What is the maximum weight a Ceiling filter frame from Hebei Fangyu typically supports?

Hebei Fangyu Filter Material Technology Co.,Ltd.’s Ceiling filter frames are engineered to support their standard filters (550g/sqm to 600g/sqm) plus additional weight from dust and moisture, with capacities varying by frame size but generally ranging from 5-10kg per square meter.

How to ensure a Paint booth ceiling filter frame maintains its weight capacity over time?

To maintain the weight capacity of a paint booth ceiling filter frame, regular inspections for corrosion or bending are essential. Hebei Fangyu Filter Material Technology Co.,Ltd. recommends cleaning and, if needed, replacing frames to ensure they continue to support paint booth ceiling filter effectively.
